Strategic Wheat Storage Facility

102' × 425' Pre-Engineered Single-Span Warehouse — Islamabad

43,350 Sq. Ft. 102 ft Clear Span 35 ft Height 3 Mega Gates

Executive Summary

Strategic wheat reserve storage designed for the Government of Gilgit-Baltistan Food Department.

  • High Capacity: Stores 30,000–40,000 Metric Tons of wheat safely.
  • Maximum Durability: Engineered steel frame built to last decades.
  • Clear ROI: Prevents grain spoilage, protecting government investment.
  • Rapid Deployment: Complete handover in just 15 weeks.
0
Sq. Ft. Covered Area
0
Feet Clear Span
0
Feet Height
0
Mega Gates

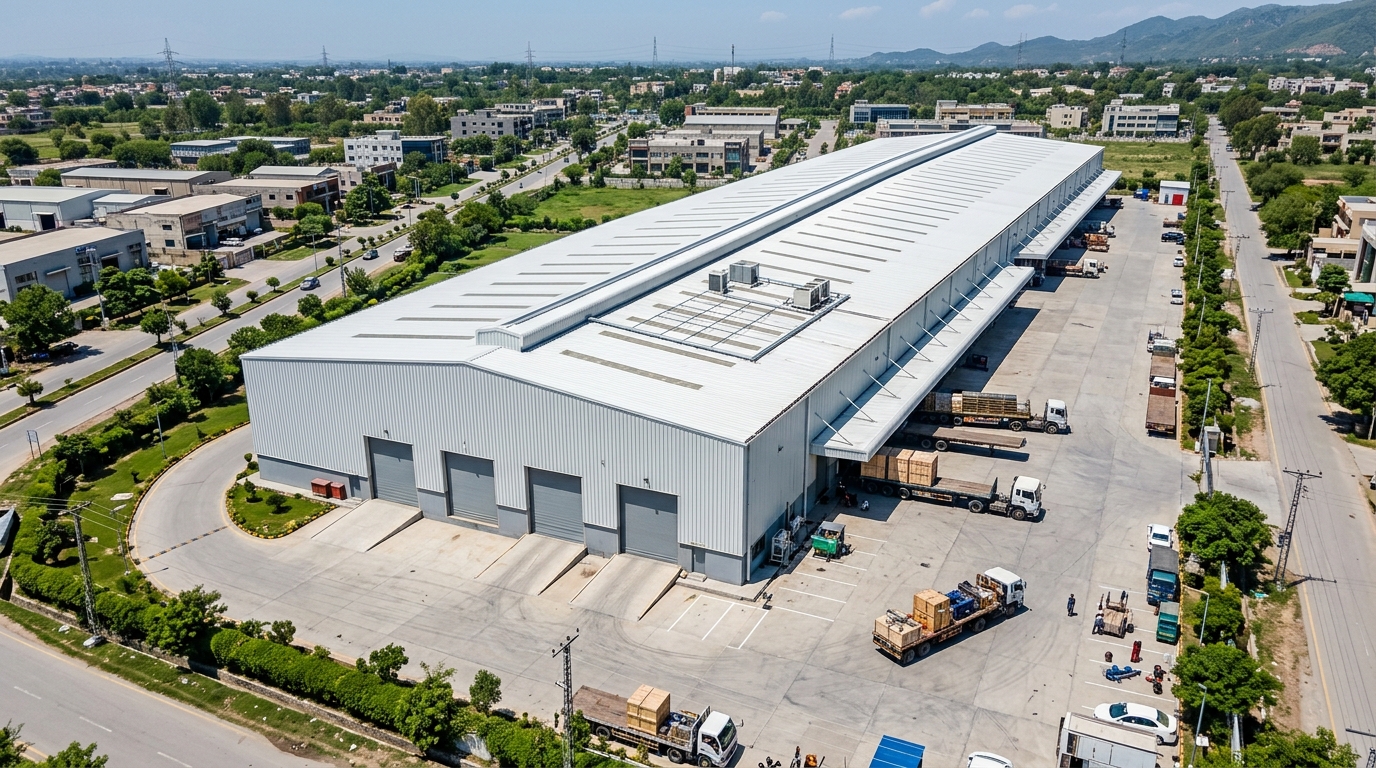

Aerial view of warehouse site

2D Architectural Plan

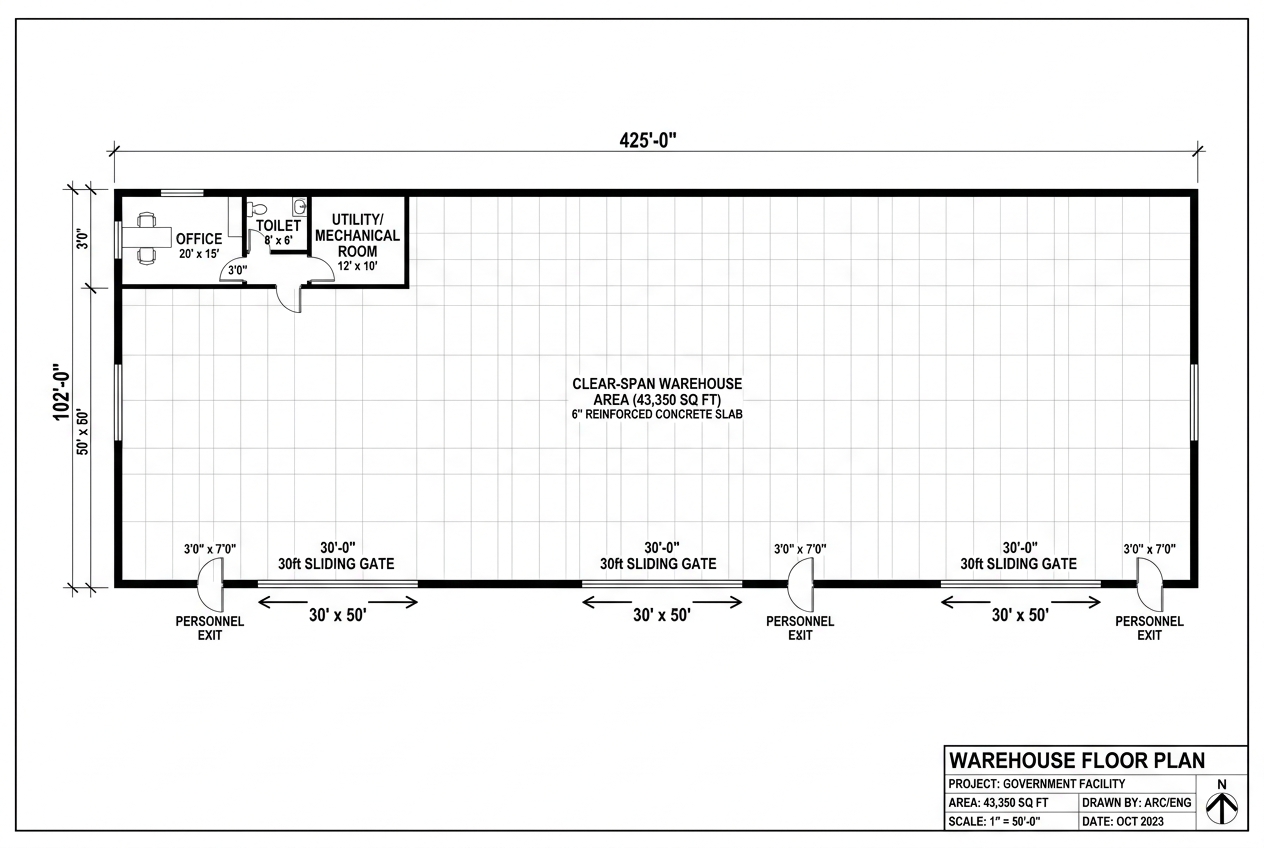

2D Architectural Floor Plan

Clear floor layout showing unobstructed interior space for maximum storage efficiency.

3D Structural Overview

3D Structural Cutaway Render

Isometric cutaway illustrating the robust pre-engineered steel framing and cladding system.

Structural Engineering

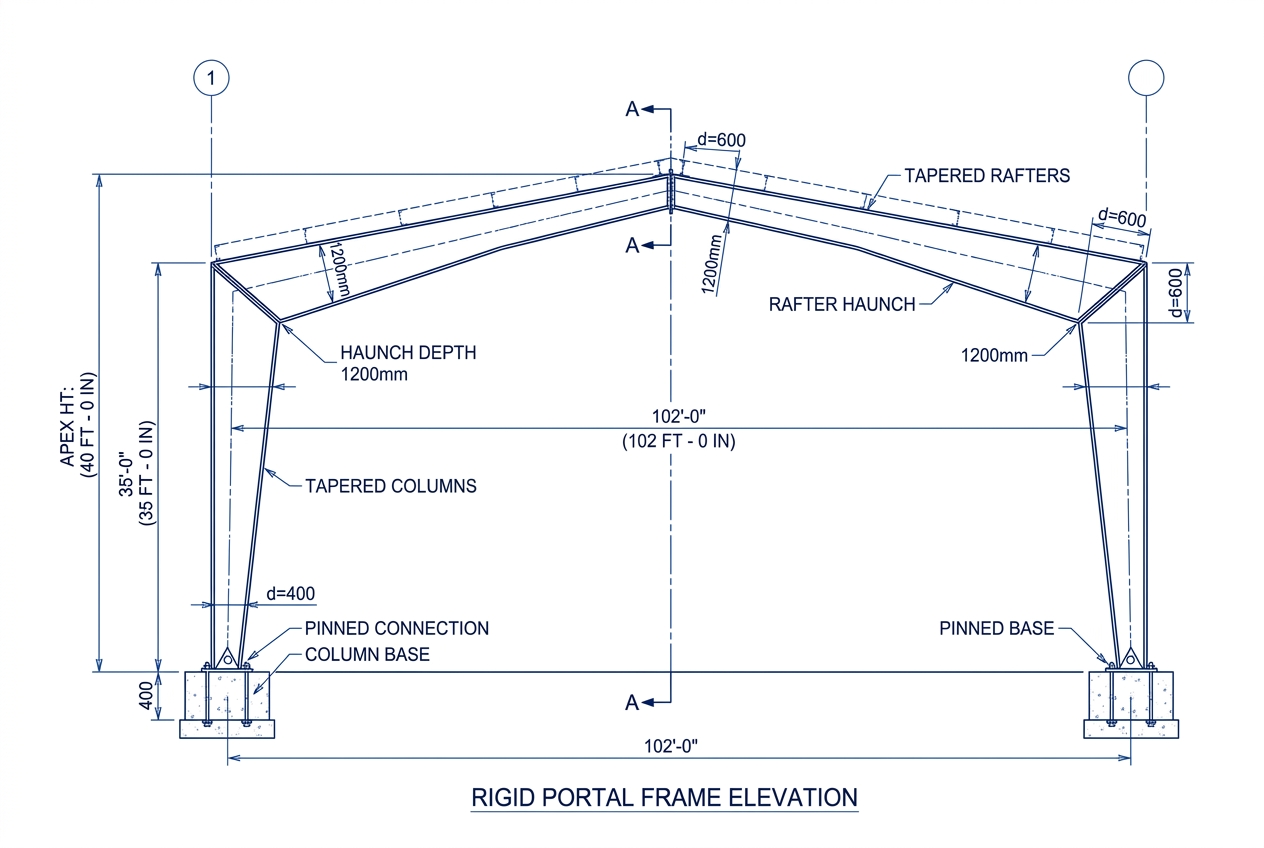

Portal frame engineering diagram

Material Specifications

  • High-Strength Steel Grade 50 (Stronger & Lighter)
  • Automated Submerged Arc Welding (Flawless joints)
  • 17 bays @ 25 ft intervals along the 425 ft length
  • Heavy-duty 25mm thick base plates

Robust Sizing

  • Main structural depth: 40" – 48" for maximum stability
  • Thick flange plates (16mm – 22mm) at high-stress points
  • Web plates reinforced with transverse stiffeners
  • No internal columns for 100% usable space

Steel Tonnage Breakdown (303 MT Total)

Primary Framing (195 MT)
Secondary (78 MT)
Hardware (30 MT)

425 ft Length

102 ft Width — Single Span

Ridge Ventilators

3 × 30'×20' Gates

Truck Loading Bays

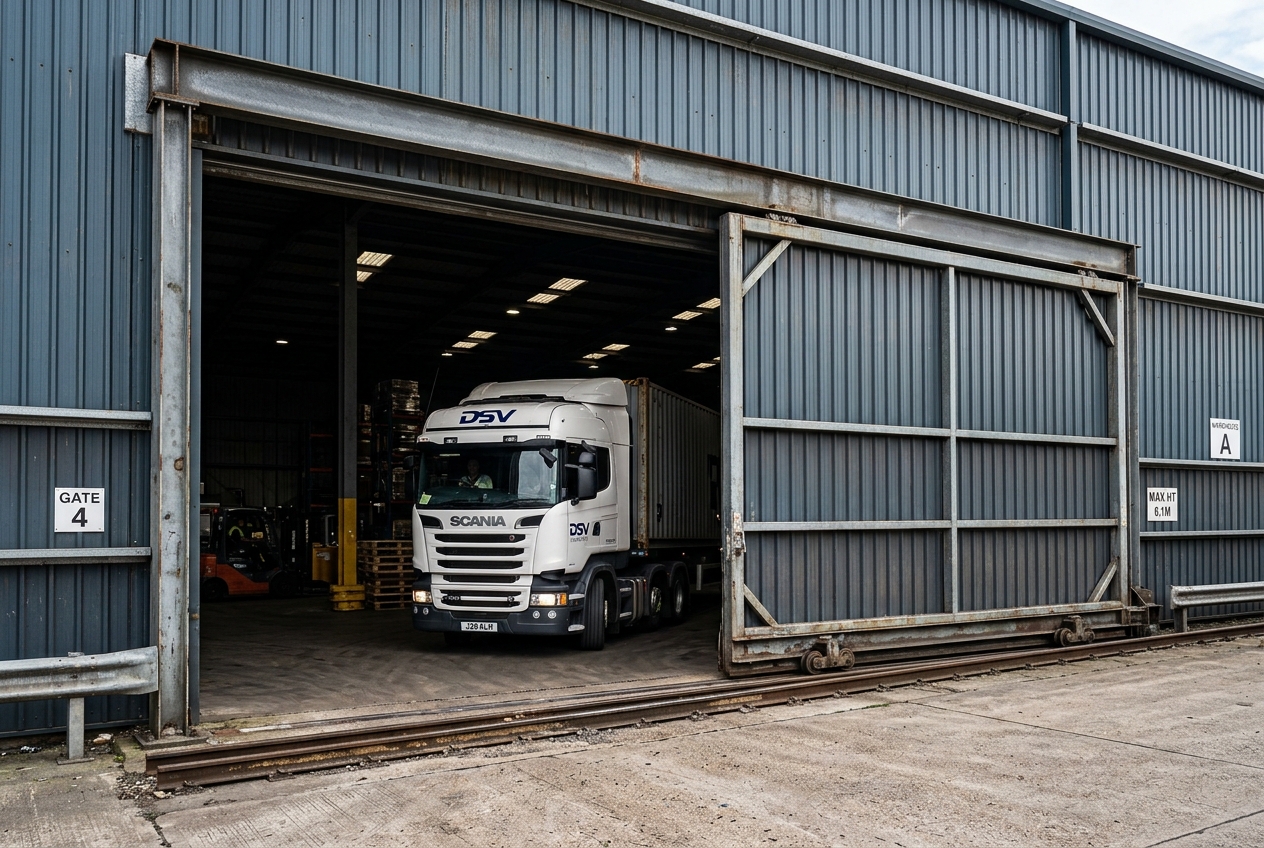

Mega Gate Detail

Mega Industrial Gate System

  • Dimensions: 3 gates, each 30' wide × 20' high.
  • Mechanism: Motorized sliding for easy operation.
  • Construction: Heavy steel framed for security.
  • Clearance: Easily fits 14-16 ft high-body trucks.
  • Sealing: Airtight seals to allow for effective wheat fumigation.

Insulated Cladding System

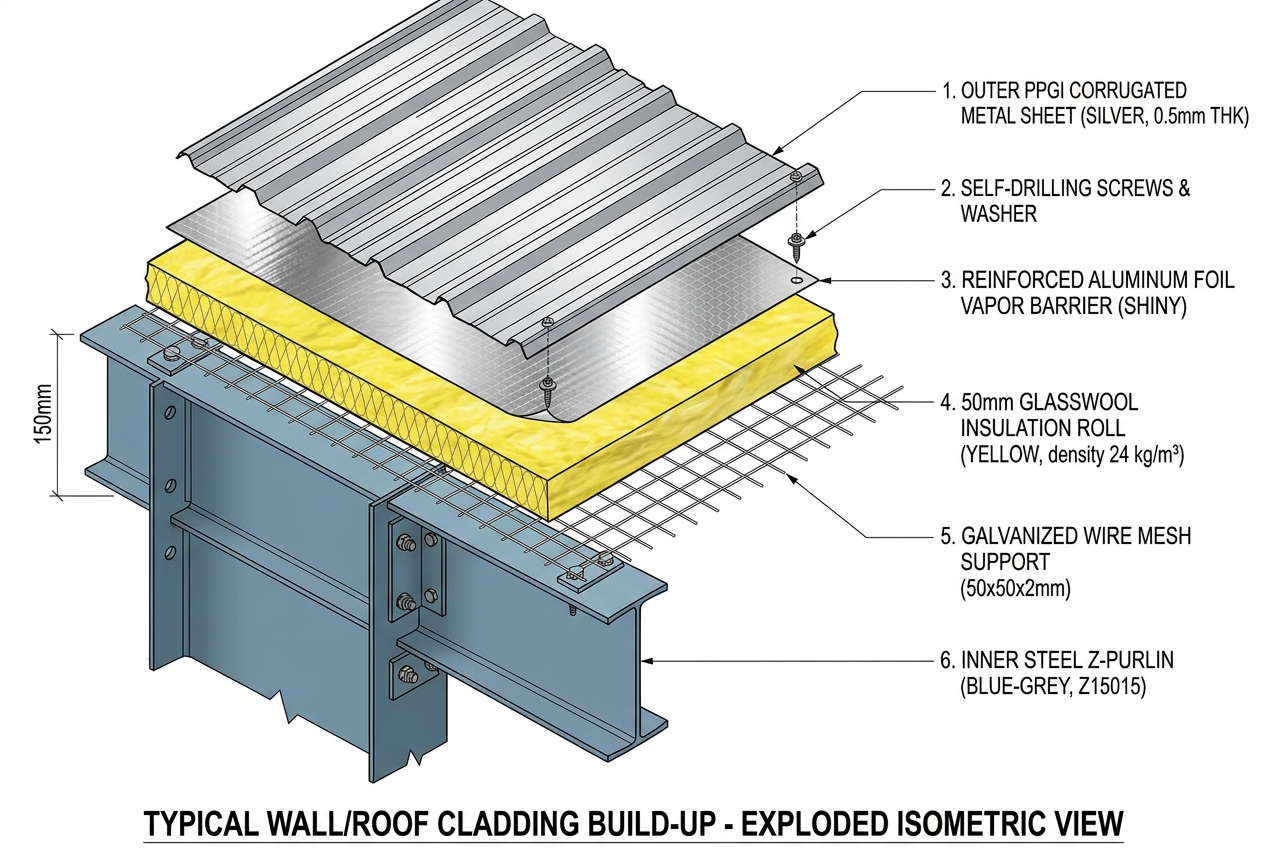

Cladding layers cross-section

STANDARD

Corrugated steel roof and wall sheets.

RECOMMENDED

INSULATED

Standard + 50mm Glasswool Insulation + reinforced aluminum foil + wire mesh.

Why Insulation Matters for Wheat

Prevents moisture condensation during cold winters. Eliminates mould and protects the grain reserves from spoilage.

Engineered for Wheat Storage

1. Airtight Fumigation

Special seals on all joints to contain gas during fumigation cycles.

2. Bird & Rodent Proofing

Steel wire mesh on all ventilators and openings to keep pests out.

3. Heavy Floor Loading

Reinforced foundation to safely support stacks of wheat bags.

4. Natural Ventilation

Ridge ventilators naturally expel hot air to keep grain cool.

Safety & Compliance

🌍

Earthquake Resistant

Designed strictly according to the Building Code of Pakistan (BCP 2021) for local seismic zones.

💨

Storm & Wind Proof

Engineered to withstand high wind speeds up to 150 km/h with heavy diagonal rod bracing.

BCP 2021 Compliant AISC Standards ASTM Materials

Investment Summary

Option A — Standard Superstructure

PKR 138,000,000
(PKR 3,180 / sq ft)
  • Structural SteelPKR 98.5M
  • Roof CladdingPKR 16.8M
  • Wall CladdingPKR 12.5M
  • Industrial GatesPKR 4.2M
  • Erection & TransportPKR 6.0M
RECOMMENDED

Option B — Insulated (Food Grade)

PKR 152,000,000
(PKR 3,510 / sq ft)
Everything in Option A PLUS:
  • Glasswool Roof InsulationPKR 6.5M
  • Glasswool Wall InsulationPKR 4.0M
  • Fumigation SealingPKR 1.5M
  • Ridge VentilatorsPKR 2.0M

Cost Breakdown (Option B)

Project Timeline — 15 Weeks

Total duration from order confirmation to handover: 15 weeks.

Fusion Developers — Proven Excellence

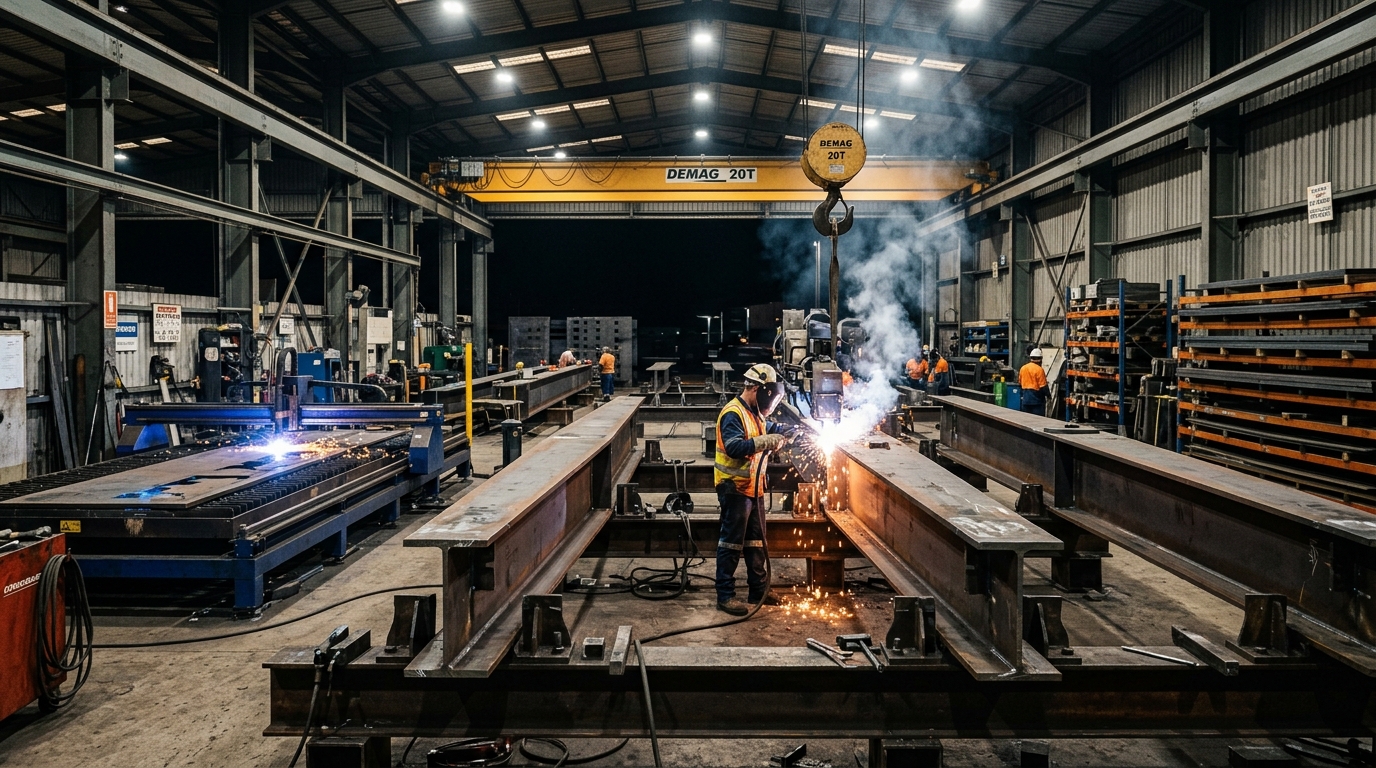

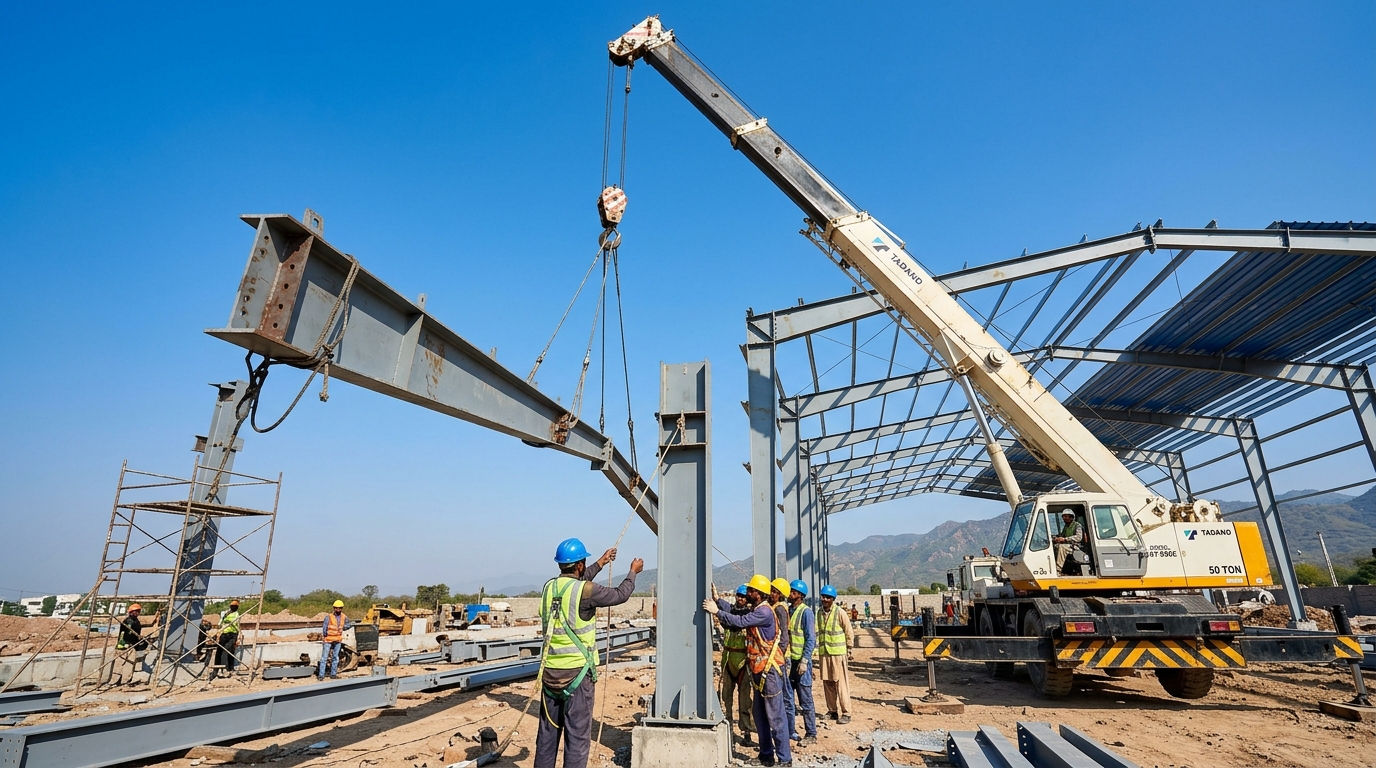

Fabrication Yard Crane Erection

Our Experience

  • Grand Sapphire Marquee: Massive steel structure (PKR 422M)
  • Sphere Circular Marquee: Complex radial dome structure
  • Commercial Building FUS-29: Multi-story tower
  • 15+ Industrial Warehouses delivered across Pakistan
"Every structure we deliver is engineered to stand for generations, protecting our nation's resources."
